How to setup L2TP VPN on Windows 8

Here you will find a detailed guide for setting up VPN connection by L2TP protocol on Windows 8 operating system. All you need is to repeat the following steps in your system. Simply complete all the actions as shown in the pictures.

1

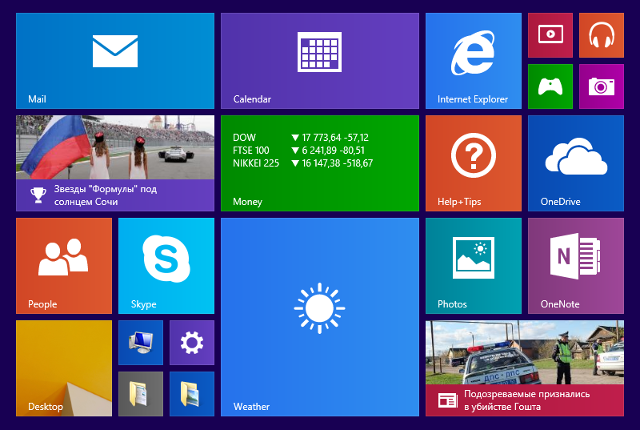

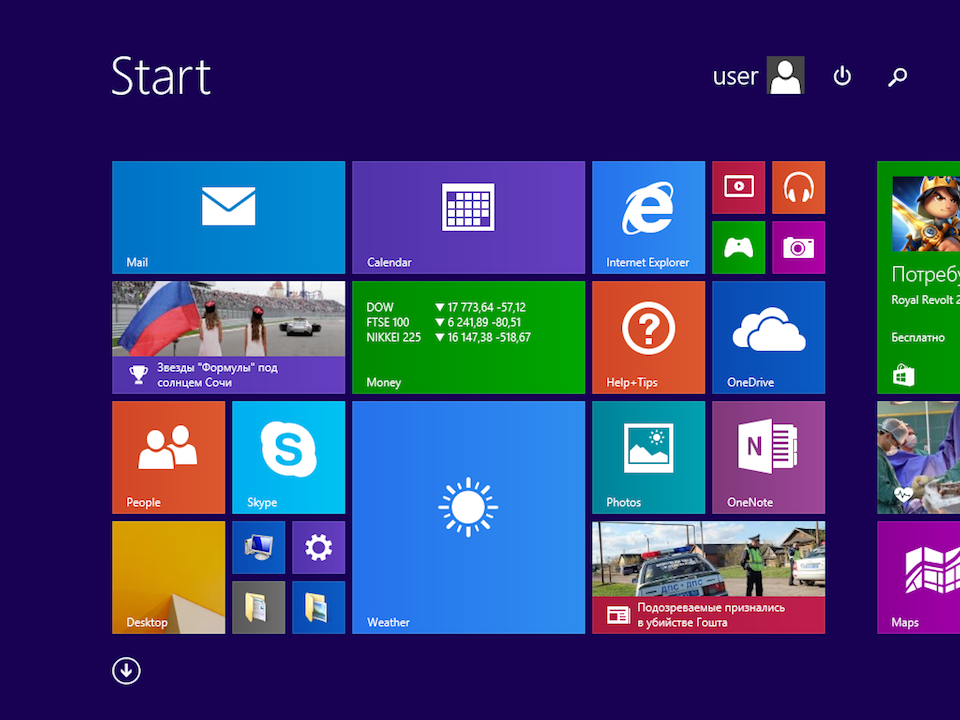

Go to Desktop.
Next
Setting up L2TP VPN on Windows 8, step 1 Setting up L2TP VPN on Windows 8, step 1
2

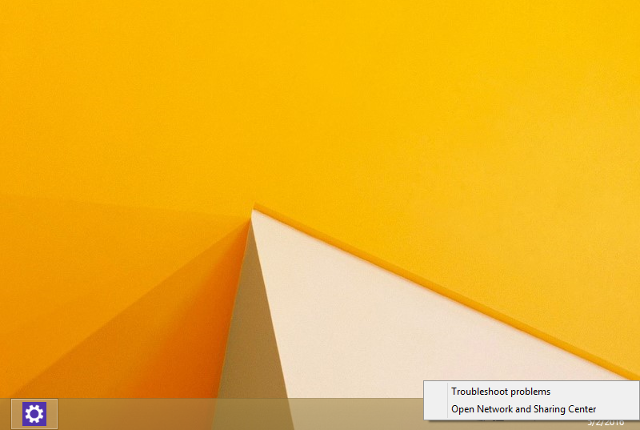

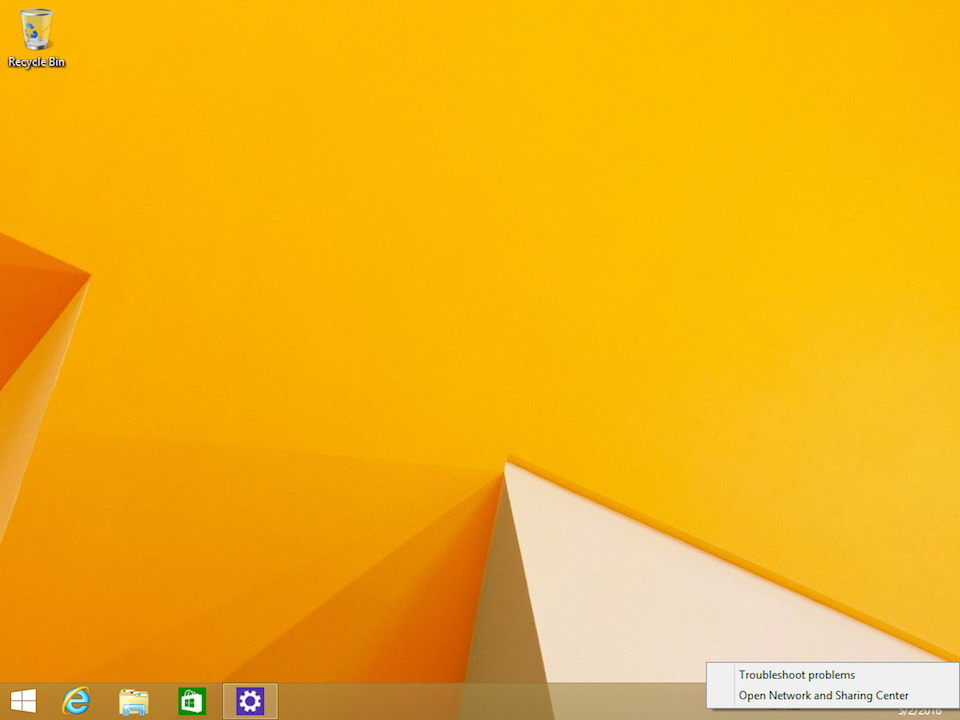

Right click on Lan / Wi-Fi icon from System tray and click on Open Network and Sharing Center.
Next
Setting up L2TP VPN on Windows 8, step 2 Setting up L2TP VPN on Windows 8, step 2

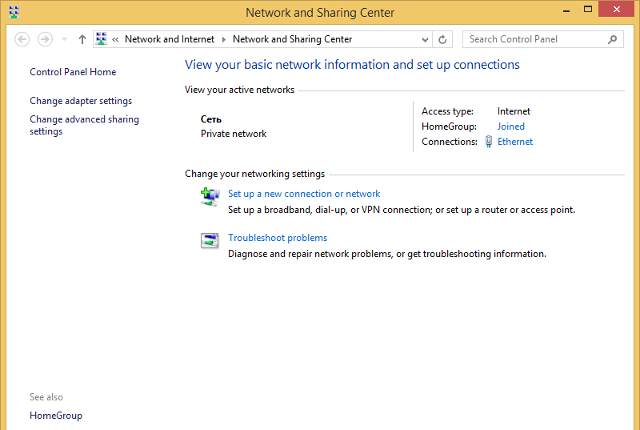

Setting up L2TP VPN on Windows 8, step 3 Setting up L2TP VPN on Windows 8, step 3
4
In appeared window select Connect to a workplace and click Next.
Next
Setting up L2TP VPN on Windows 8, step 4 Setting up L2TP VPN on Windows 8, step 4
Setting up L2TP VPN on Windows 8, step 5 Setting up L2TP VPN on Windows 8, step 5
6

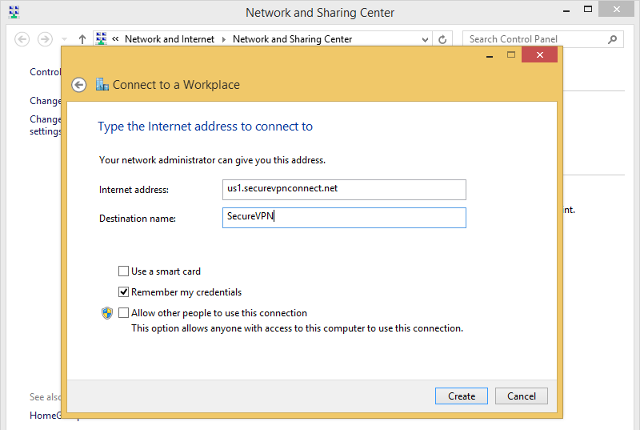

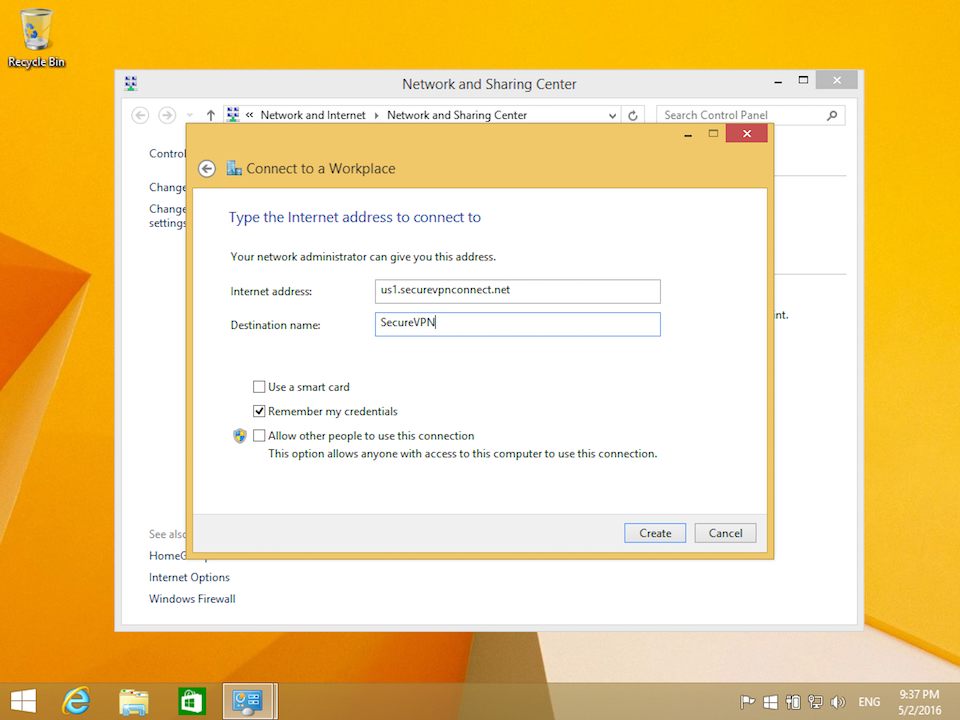

Insert the following settings: Check item Remember my credentials and click Create.
Next
Setting up L2TP VPN on Windows 8, step 6 Setting up L2TP VPN on Windows 8, step 6
7
Click Change adapter settings from the Network and Sharing Center.
Next
Setting up L2TP VPN on Windows 8, step 7 Setting up L2TP VPN on Windows 8, step 7
8
In appeared window right click on created connection and to select Properties.
Next
Setting up L2TP VPN on Windows 8, step 8 Setting up L2TP VPN on Windows 8, step 8
9
Click on Security tab and set parameters:
  • Type of VPN - Layer 2 Tunneling Protocol with IPsec (L2TP/IPsec)
  • Data encryption - Maximum strength encryption (disconnect if server declines)
Then click Advanced settings.
Next
Setting up L2TP VPN on Windows 8, step 9 Setting up L2TP VPN on Windows 8, step 9
10
Set preshared key - a-secure-psk and click OK.
Next
a-secure-psk Setting up L2TP VPN on Windows 8, step 10 Setting up L2TP VPN on Windows 8, step 10
11

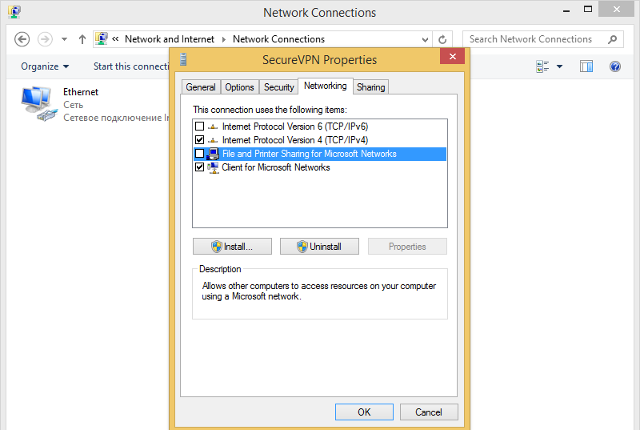

On Networking tab uncheck items Internet Protocol version 6 and File and Printer Sharing for Microsoft Networks, then click OK.
Next
Setting up L2TP VPN on Windows 8, step 11 Setting up L2TP VPN on Windows 8, step 11
12

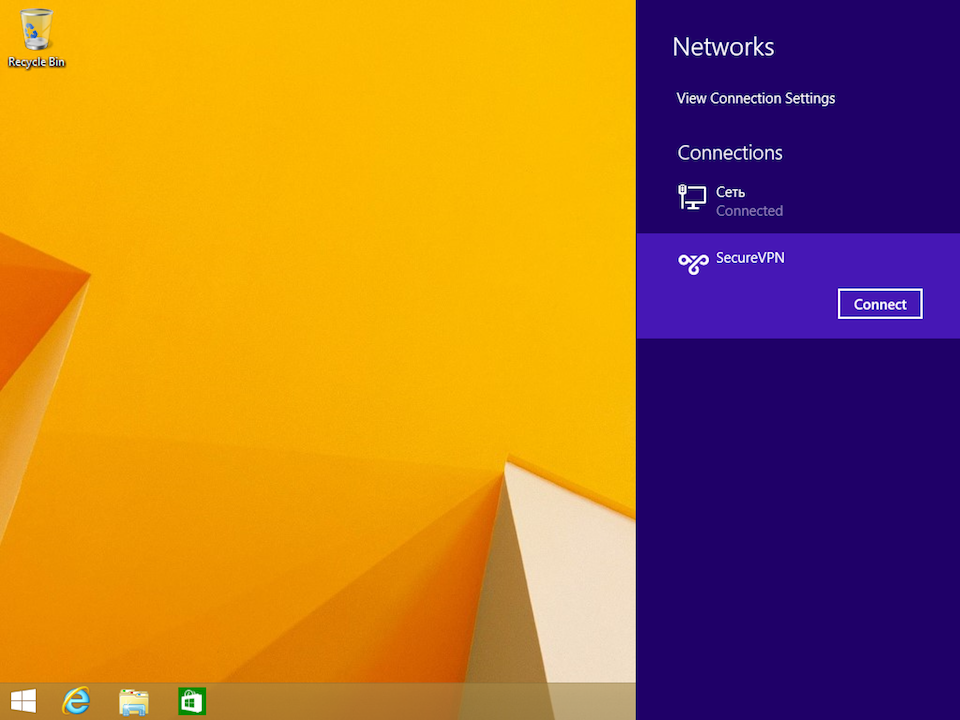

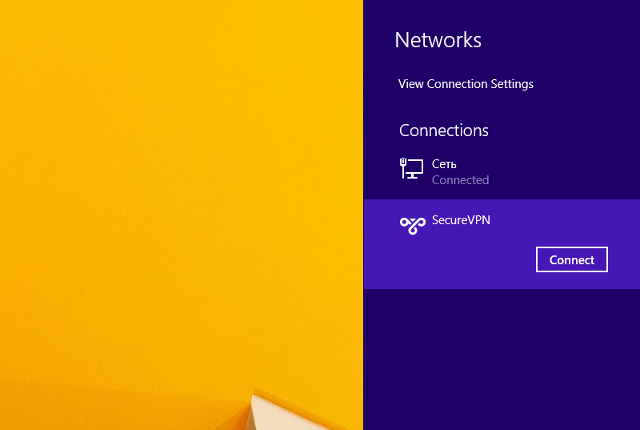

To establish VPN connection click on Lan / Wi-Fi icon from System tray, select created connection and click Connect.
Next
Setting up L2TP VPN on Windows 8, step 12 Setting up L2TP VPN on Windows 8, step 12
13

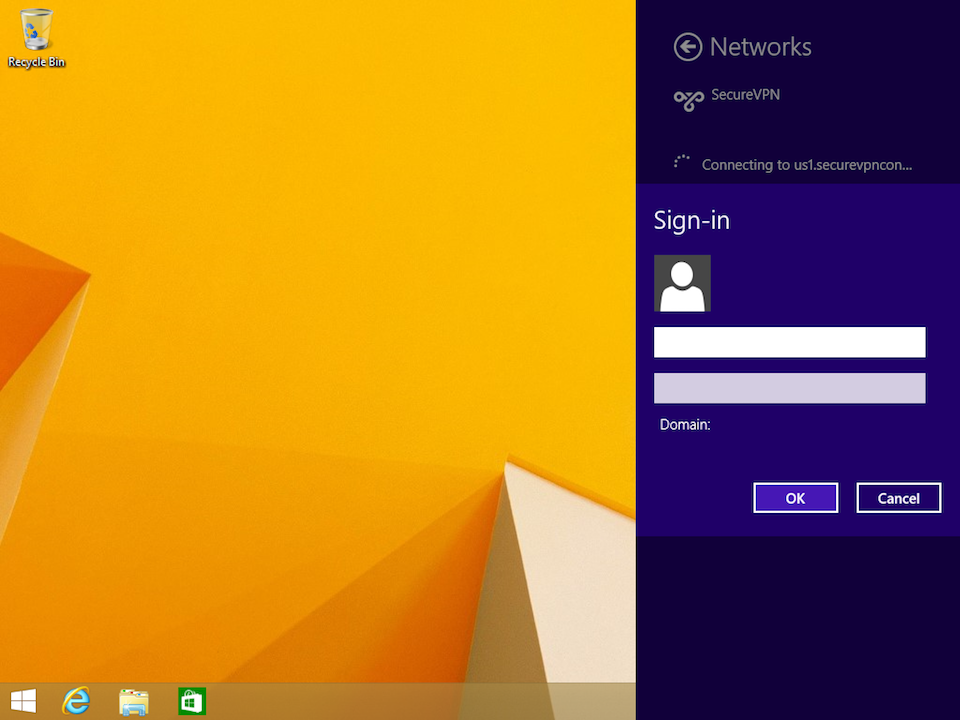

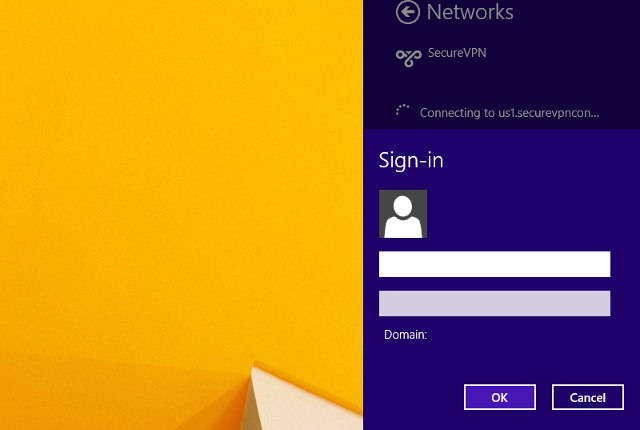

Insert accounting data and click OK: Important Note: your VPN username & password is placed in file readme.txt (was sent to your email after ordering the subscription).
Next
username password Setting up L2TP VPN on Windows 8, step 13 Setting up L2TP VPN on Windows 8, step 13
14

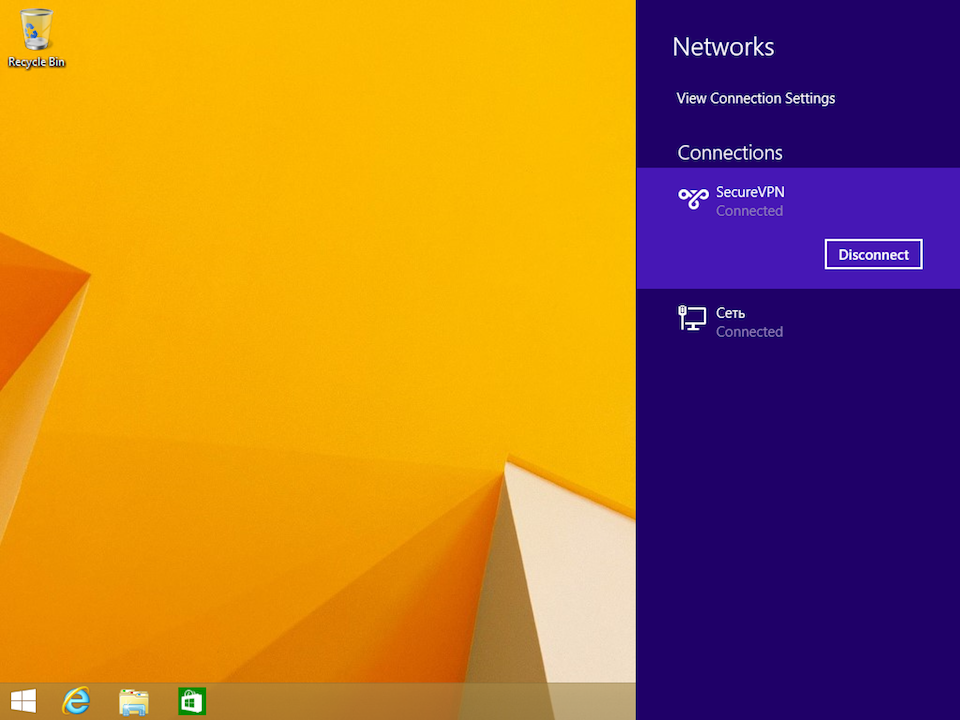

VPN connection will be established in few seconds. To disconnect click on Lan / Wi-Fi icon from System tray, select connection and click Disconnect.
Next
Setting up L2TP VPN on Windows 8, step 14 Setting up L2TP VPN on Windows 8, step 14
15
If you need change address of VPN server - open properties of VPN connection (repeat steps 7-8), click on General tab and set new address of VPN server, then click OK.

Our fresh VPN server list is here.
To top
Setting up L2TP VPN on Windows 8, step 15 Setting up L2TP VPN on Windows 8, step 15
