How to setup L2TP VPN on Windows Vista

Windows Vista as other versions of OS by Microsoft supports L2TP VPN protocol. Following our instructions, you will be able to setup the connection quickly and enjoy all the benefits of our VPN service.

1

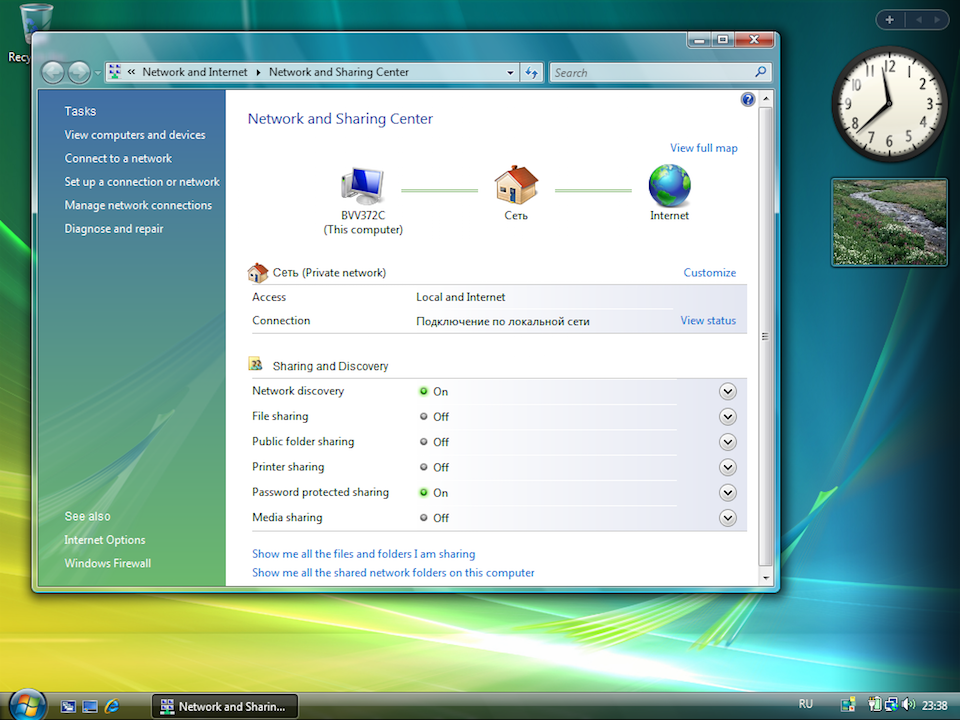

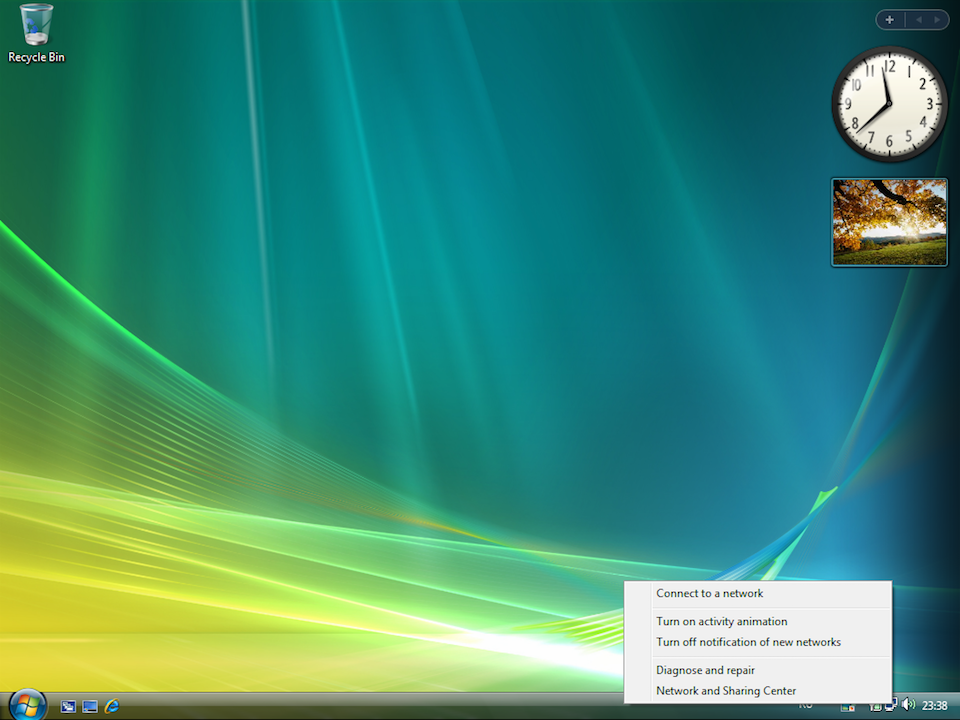

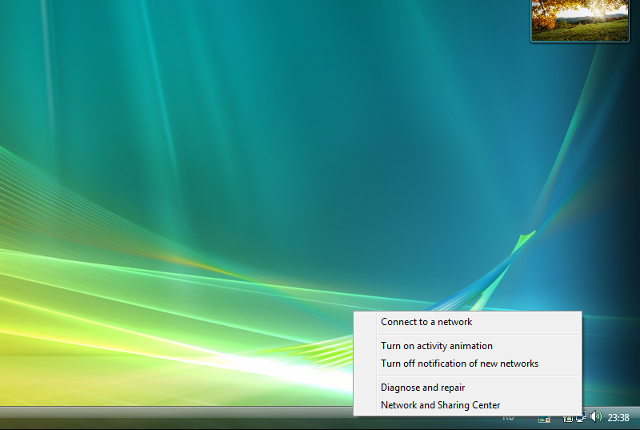

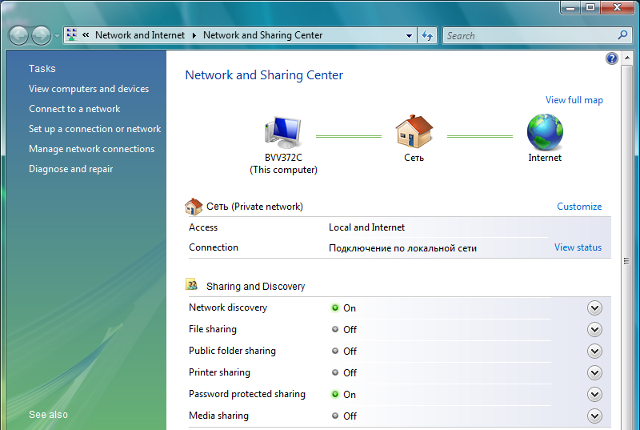

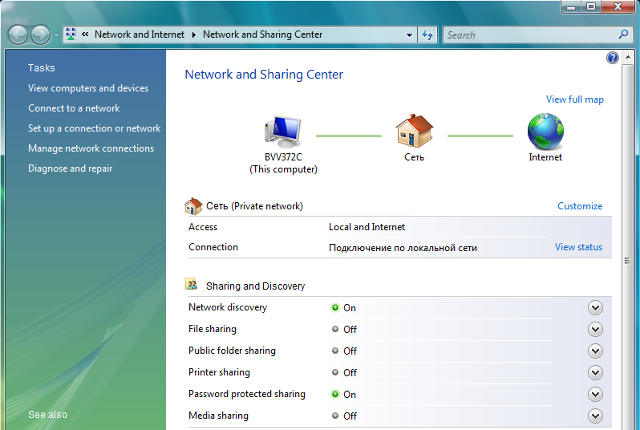

Right click on Lan / Wi-Fi icon from System tray and click on Network and Sharing Center.
Next
Setting up L2TP VPN on Windows Vista, step 1 Setting up L2TP VPN on Windows Vista, step 1
Setting up L2TP VPN on Windows Vista, step 2 Setting up L2TP VPN on Windows Vista, step 2
3

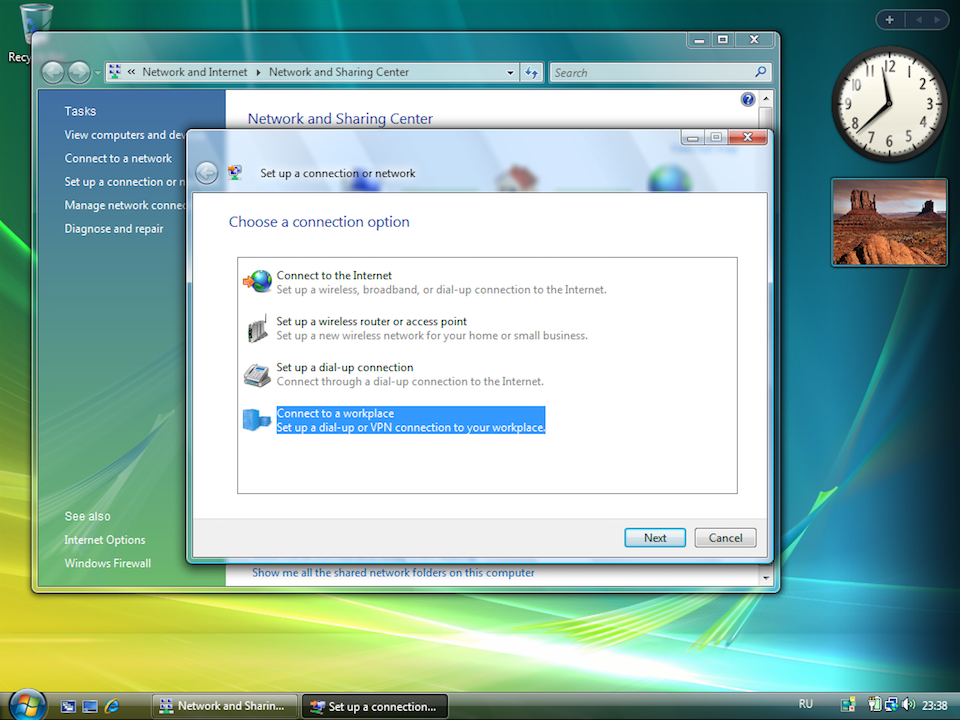

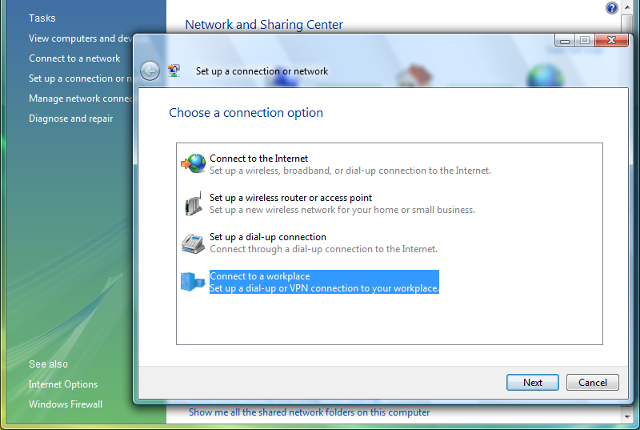

In appeared window select Connect to a workplace and click Next.
Next
Setting up L2TP VPN on Windows Vista, step 3 Setting up L2TP VPN on Windows Vista, step 3

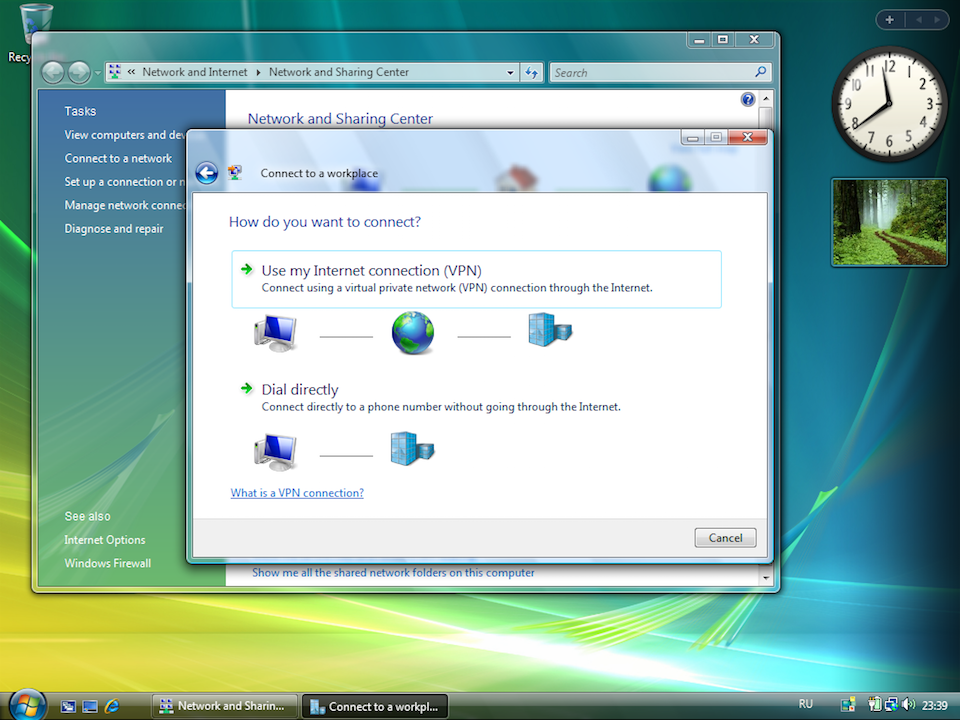

Setting up L2TP VPN on Windows Vista, step 4 Setting up L2TP VPN on Windows Vista, step 4
5

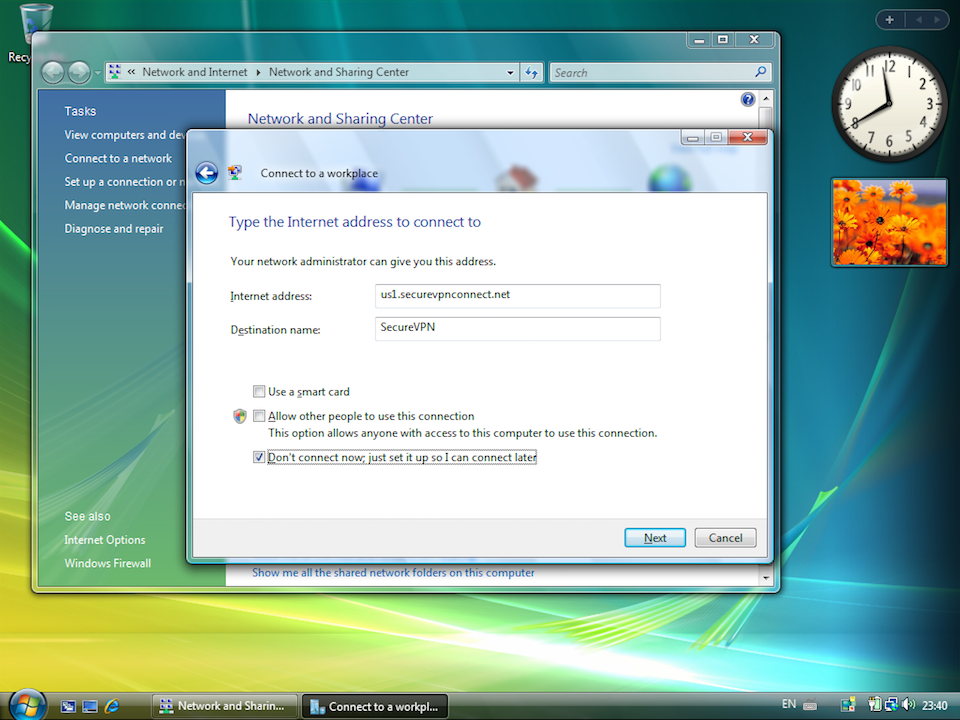

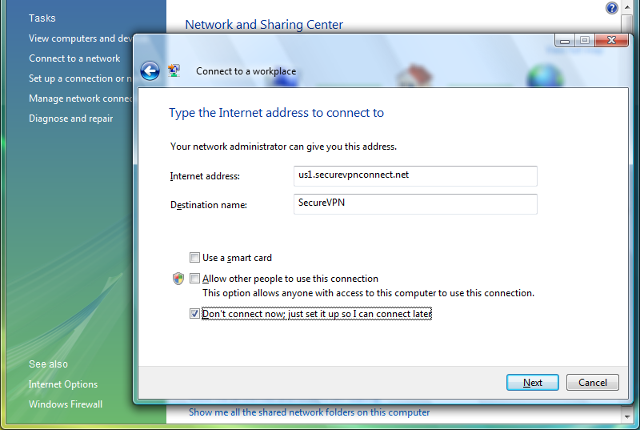

Insert the following settings: Check item Don't connect now and click Next.
Next
Setting up L2TP VPN on Windows Vista, step 5 Setting up L2TP VPN on Windows Vista, step 5
6

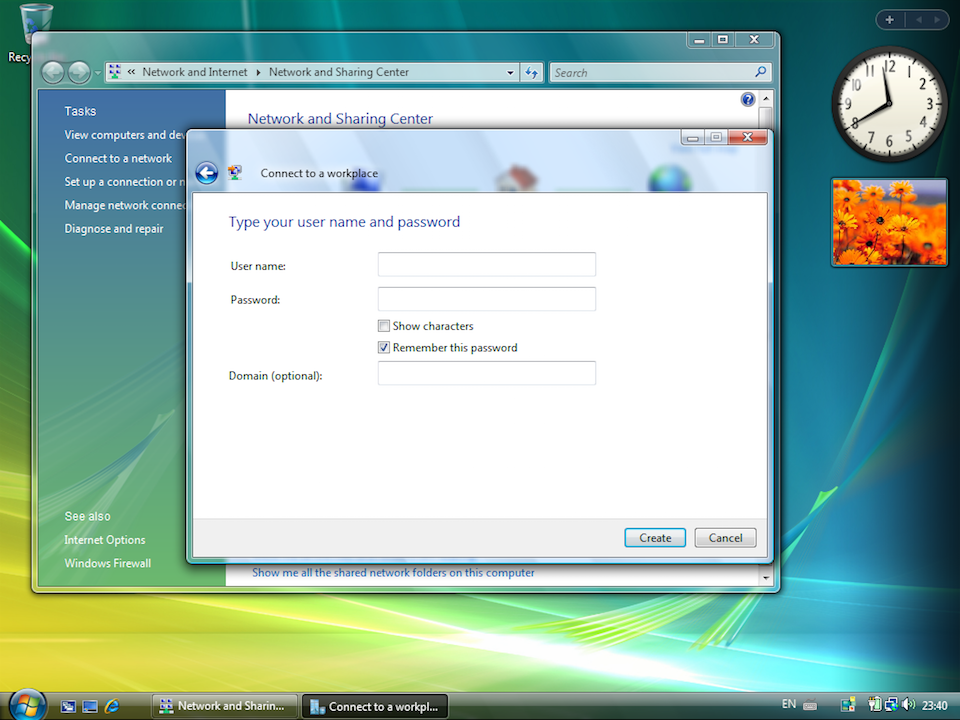

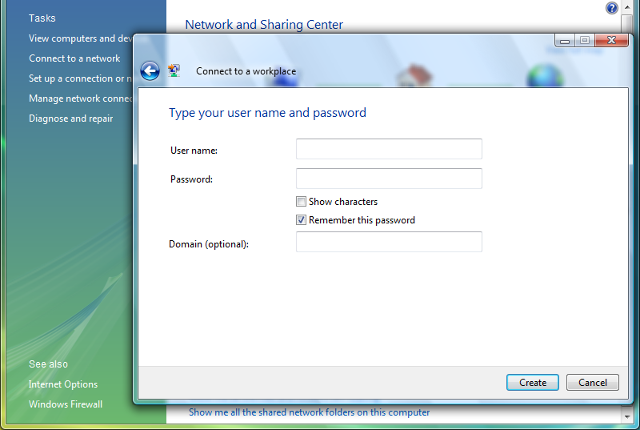

Insert accounting data (sent to your email after ordering): Check item Remember this password and click Create.

Important Note: Please always remember your VPN username & password is different from your Website Personal Area email address & password.
Next
username password Setting up L2TP VPN on Windows Vista, step 6 Setting up L2TP VPN on Windows Vista, step 6
7

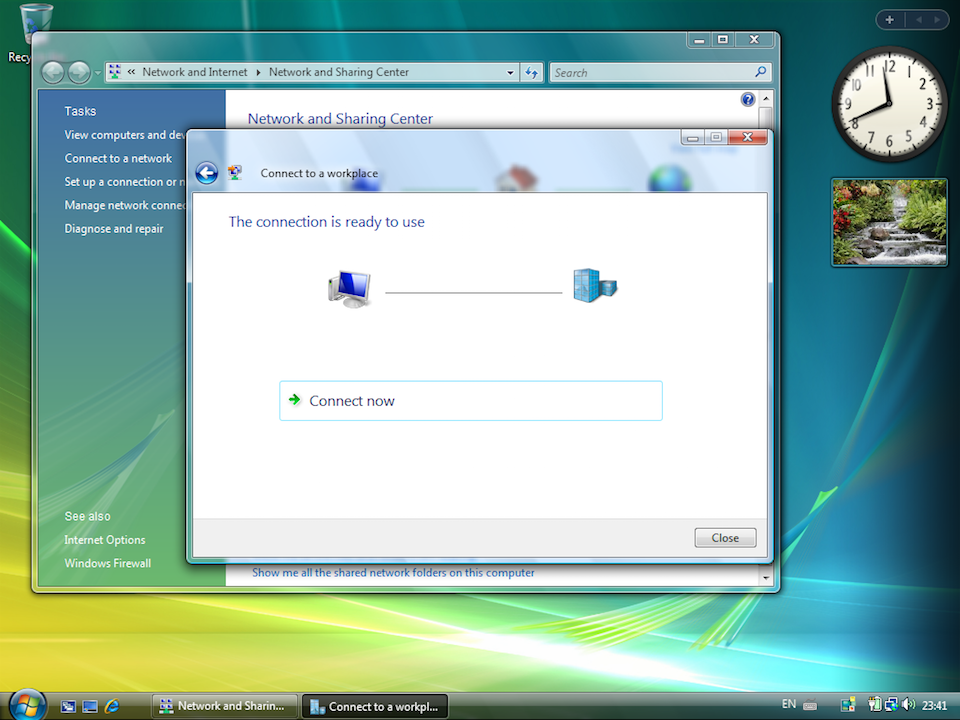

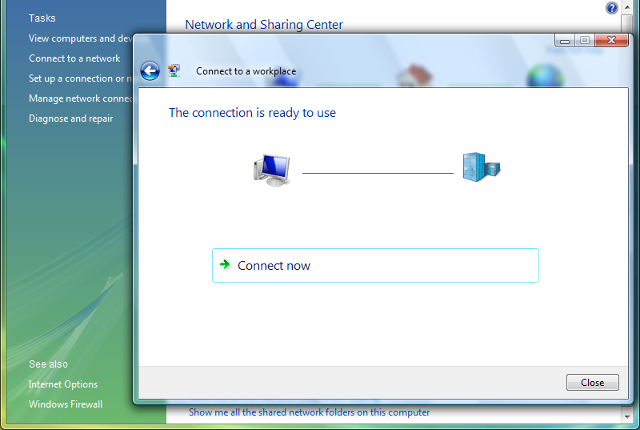

Click Close.
Next
Setting up L2TP VPN on Windows Vista, step 7 Setting up L2TP VPN on Windows Vista, step 7
Setting up L2TP VPN on Windows Vista, step 8 Setting up L2TP VPN on Windows Vista, step 8
9

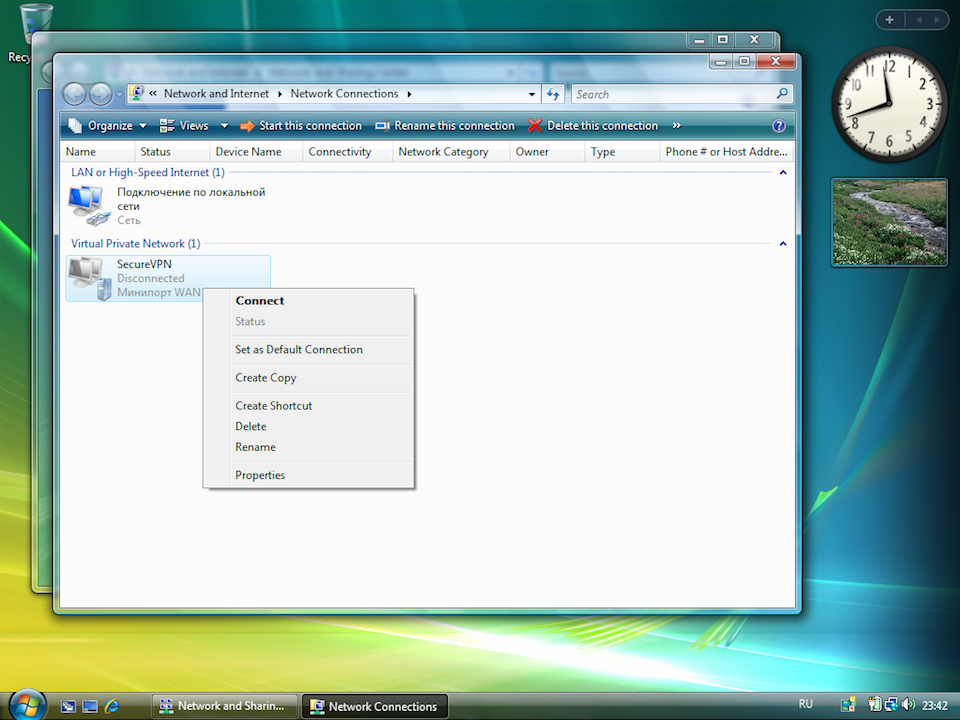

Right-click on just created VPN-connection and select Properties.
Next
Setting up L2TP VPN on Windows Vista, step 9 Setting up L2TP VPN on Windows Vista, step 9
10

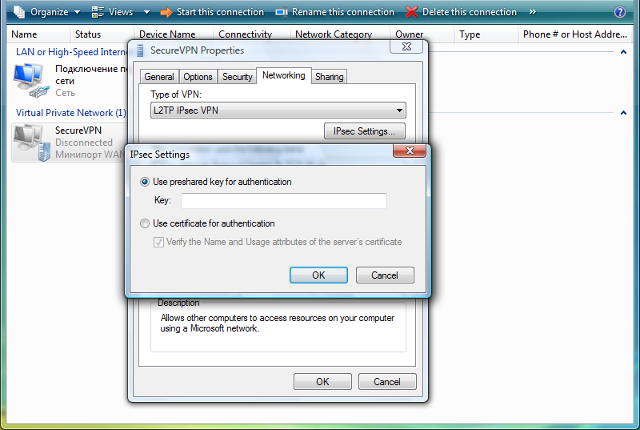

On Networking tab set Type of VPN - L2TP IPsec VPN, uncheck items Internet Protocol version 6 and File and Printer Sharing for Microsoft Networks, then click IPsec Settings.
Next
Setting up L2TP VPN on Windows Vista, step 10 Setting up L2TP VPN on Windows Vista, step 10
11

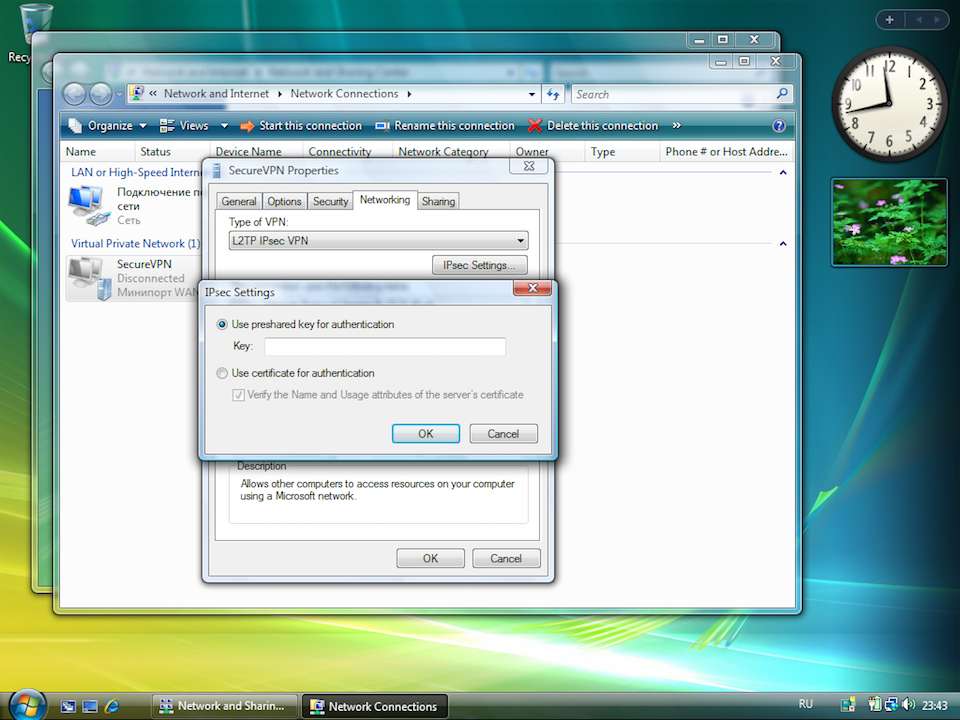

Set preshared key - a-secure-psk and click OK.
Next
a-secure-psk Setting up L2TP VPN on Windows Vista, step 11 Setting up L2TP VPN on Windows Vista, step 11
12
To establish VPN connection click on Start->Connect to, select created connection and click Connect.
Next
Setting up L2TP VPN on Windows Vista, step 12 Setting up L2TP VPN on Windows Vista, step 12
13

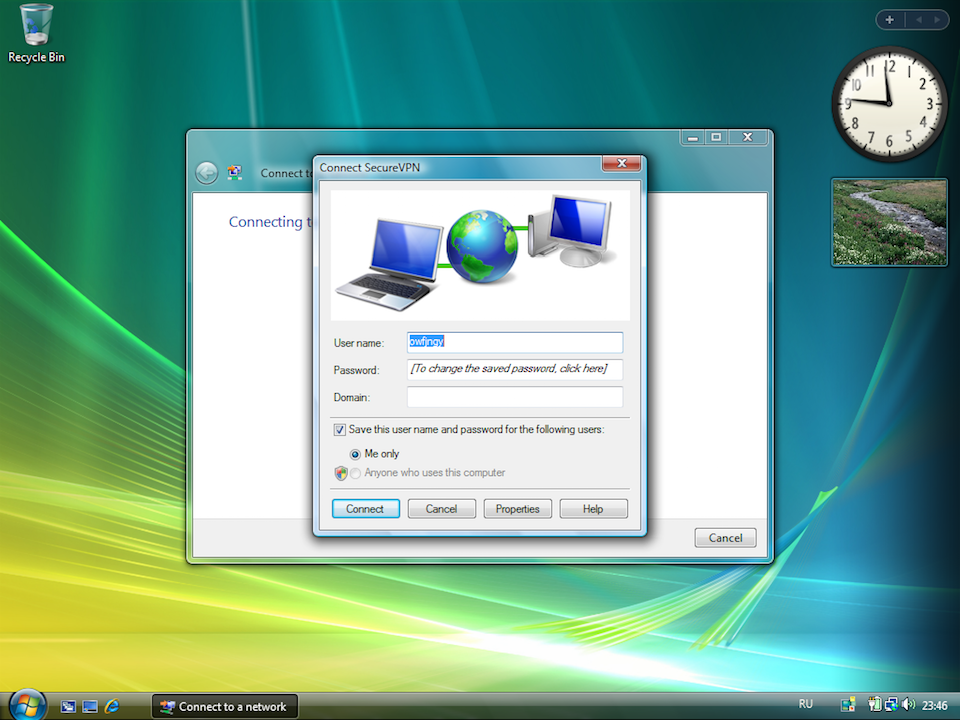

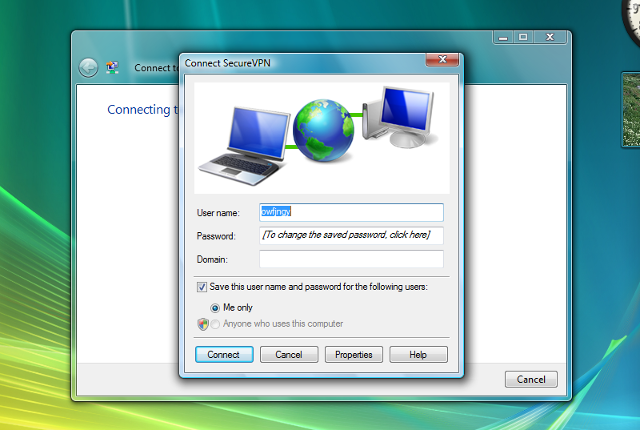

Click Connect in appeared window.
Next
Setting up L2TP VPN on Windows Vista, step 13 Setting up L2TP VPN on Windows Vista, step 13
14

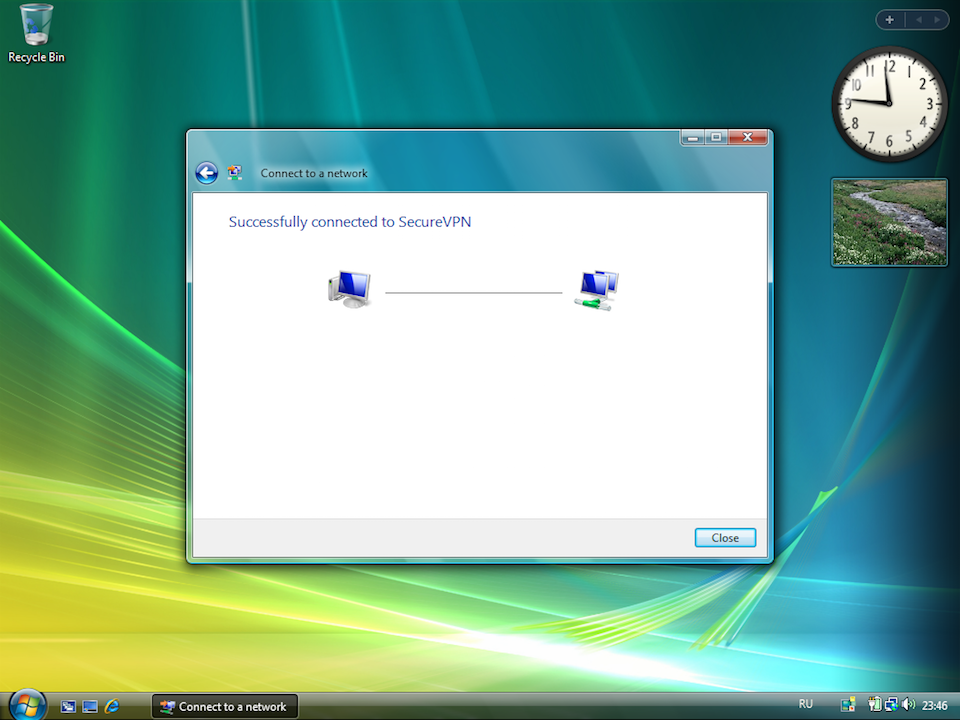

VPN connection will be established in few seconds.
Next
Setting up L2TP VPN on Windows Vista, step 14 Setting up L2TP VPN on Windows Vista, step 14
15

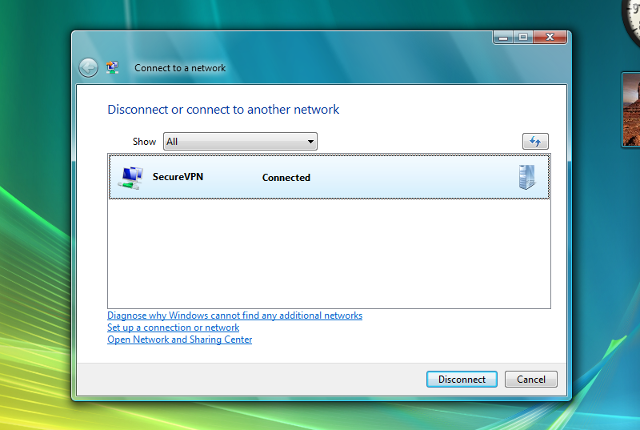

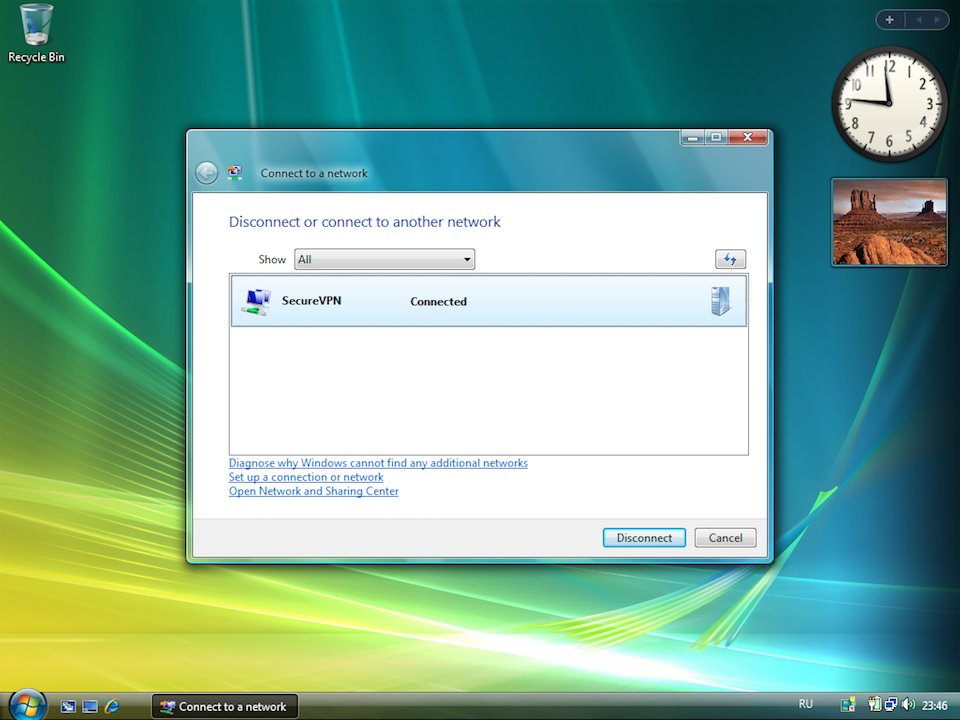

To break VPN connection click on Start->Connect to, select created connection and click Disconnect.
Next
Setting up L2TP VPN on Windows Vista, step 15 Setting up L2TP VPN on Windows Vista, step 15
16

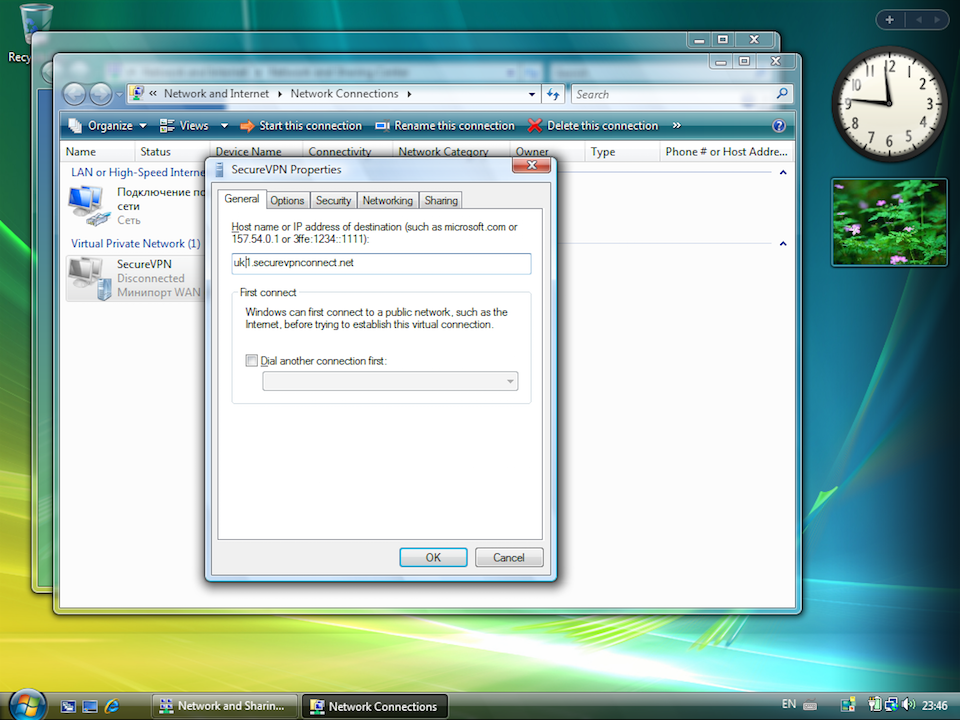

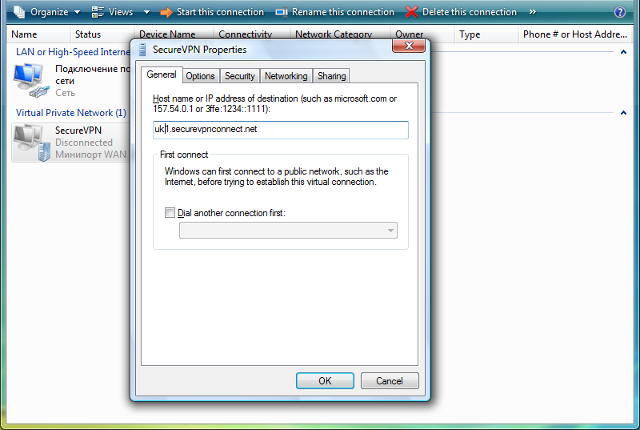

If you need change address of VPN server - open properties of VPN connection (repeat steps 8-9), click on General tab and set new address of VPN server, then click OK.
To top
Setting up L2TP VPN on Windows Vista, step 16 Setting up L2TP VPN on Windows Vista, step 16
